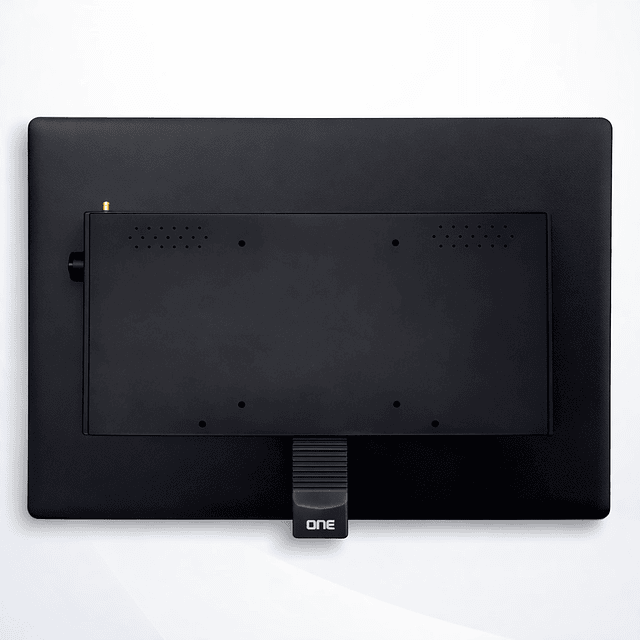

Back2U-11.6
· Vibrant 11.6” PCAP touch display
· 2D imager for scanning of barcodes
· VESA wall mount
· High-performance CPU with fanless design
· Front panel IP65, entire terminal IP54
· Android 13 OS
· Modular design with optional accessories
Price Checker Terminal
Octa-Core 64 bit 4 GB 64 GB
Item Description
1D All major 1D symbologies
2D All major 2D symbologies
Depth of Field EAN 13 (13mil) 70mm-610mm
Depth of Field Code 39 (5mil) 110mm-290mm
Depth of Field PDF417 (6.7mil) 110mm-230mm
Depth of Field DataMatrix (10mil) 110mm-260mm
Depth of Field QR (15mil) 55mm-410mm
Operating System Android 13 GMS
Processor 2.0GHz Octa-Core 64-bit Processor
Memory RAM 4GB
Memory Flash 64GB
AC Adapter 12V@3A
Dimensions (mm) 28.5 (W) × 190.0 (H) × 32 (D) mm
Display 11.6”(1920 X 1080), capacitive touch screen
Interfaces 2 X USB 2.0, 3 X USB 3.0,, Ethernet RJ45, MicroSD Card support (up to 128GB), Mic, SPK,
COM1.
Optional Modules 4G module
Optional Power over Ethernet RJ45 IEEE 802.3 af/at
SIM/TF Nano+Nano/Nano+TF
WWAN RADIO
2G: 850/900/1800/1900MHz; 3G: WCDMA (B1, B2, B5, B8); CDMA:1X EVDO (BC0); TDSCDMA: B34/39; 4G: TDD-LTE(B34,B38, B39, B40, B41), FDD-LTE(B1, B2, B3, B5, B7, B8,
B20, B28 a&b)
WLAN RADIO IEEE 802.11 b/g/n, support 2.4G
WPAN RADIO Bluetooth 3.0/4.0
Optional NFC 13.56MHz RFID: ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693. Supports ID
card reading, supports reader/writer modes. (optional NFC module is required)
Optional GPS GPS(AGPS), GLONASS, Beidou, Galileo
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
